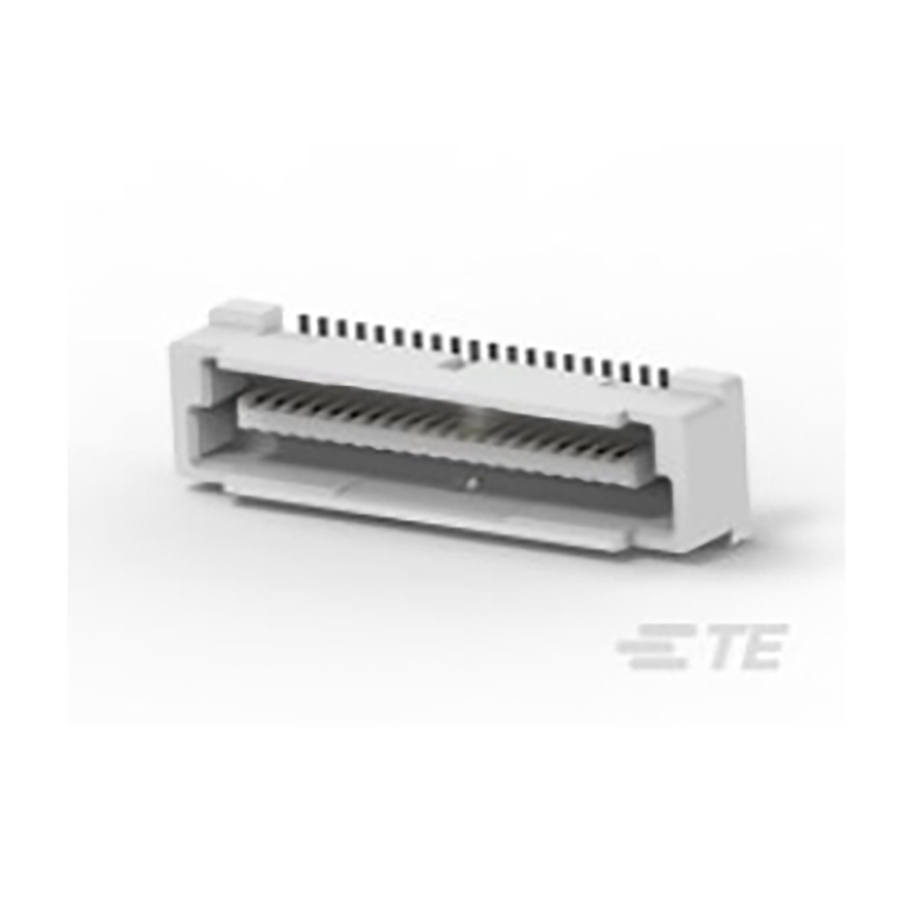

5177986-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5177986-1
Datasheet:
Description:
Board to Board Connectors SMD/SMT Plug, Tab Number of Positions:40 Number of Rows:2 Row Spacing:2.4 mm Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 21.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 5 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 6 mm |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| Insulation Resistance | 2 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 800 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Male |
| Number of Contacts | 40 |
| ELV | Compliant |
| Connector Type | Plug, Tab |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.4 mm |
| Housing Material | Polymer |
| Circuit Application | Signal |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Contact Current Rating | 500 mA |
| Housing Color | Natural |
| Plating | Gold |
| Stackable | Yes |
| Stack Height | 8.9916 mm |
| Preloaded | Yes |
| Mated Stacking Heights | 17 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Finish Thickness - Mating | 200 nm |
| Mating Alignment | With |
| Mounting Angle | Vertical |
Stock: 197
Distributors
pcbx
pcbxUnit Price$1.55386
Ext.Price$1.55386
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.55386 | $1.55386 |
| 10 | $1.30099 | $13.00990 |
| 25 | $1.18104 | $29.52600 |
| 50 | $1.07215 | $53.60750 |
| 100 | $0.97330 | $97.33000 |
| 300 | $0.93743 | $281.22900 |
| 500 | $0.90288 | $451.44000 |
